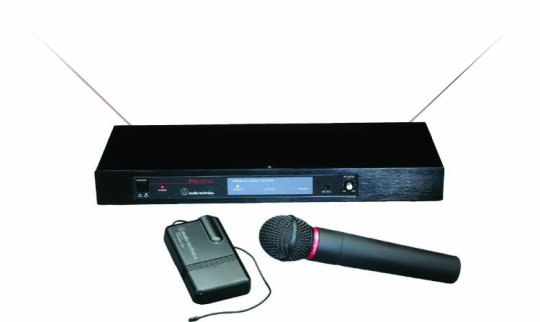

Pro-R2 receiver offers both balanced (XLR-type) & unbalanced (1/4” phone jack) audio outputs.Includes mounting brackets to mount 19” metal receiver case.UniPak transmitter features a “Hi/Lo” battery save switch to prolong battery life & reduce interference.UniPak transmitter w/ durable HRS connector is compatible w/ a wide range of A-T mics.
| Overall System |
| |
Operating Frequency |
VHF high band, 169 MHz to 216 MHz |
| |
Frequency Stability |
±0.005%, single-frequency crystal-controlled |
| |
Modulation Mode |
FM |
| |
Maximum Deviation |
±30 kHz, traveling frequencies ±15 kHz |
| |
Operating Range |
200' minimum |
| |
Operating Temperature Range |
40° F (4° C) to 110° F (43° C) |
| |
Frequency Response |
100 Hz to 15 kHz |
PRO-R2 Receiver |
| |
Receiving System |
Dual independent receivers, automatic-switching diversity reception |
| |
Image Rejection |
>=60 dB |
| |
Signal-to-noise Ratio |
95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz |
| |
Total Harmonic Distortion |
<=1% (10 kHz deviation at 1 kHz) |
| |
Sensitivity |
10 µV for 60 dB S/N (IEC-weighted) |
| |
Audio Output |
Unbalanced: 350 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Balanced: 220 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load) |
| |
Output Connectors |
Unbalanced: 1/4" phone jack Balanced: XLRM-type |
| |
Power Supply |
12-18V DC, 350 mA, with provided AC adapter |
| |
Dimensions |
16.93" (430.0 mm) W x 1.92" (48.8 mm) H x 7.28" (185.0 mm) D |
| |
Net Weight |
5.5 lbs (2.5 kg) |
| |
Accessories Included |
Two whip antennas, rack-mount adapters, AD1205A AC adapter |
ATW-T28 Handheld Transmitter |
| |
RF Power Output |
50 mW Max |
| |
Spurious Emissions |
Under federal regulations |
| |
Dynamic Range |
>=90 dB |
| |
Microphone Element |
Dynamic unidirectional |
| |
Battery (not included) |
9V (NEDA type 1604) alkaline |
| |
Current Consumption |
30 mA typical |
| |
Battery Life |
Approximately 15 hours in High position, approximately 20 hours in Low position |
| |
Dimensions |
9.50" (241.3 mm) long, 2.10" (53.3 mm) diameter |
| |
Net Weight (without battery) |
12.7 oz (360 grams) |
| |
Accessory Included |
Stand clamp |
